1001269378 XLP Wheel lift Pivot Pin Kit

$280.10

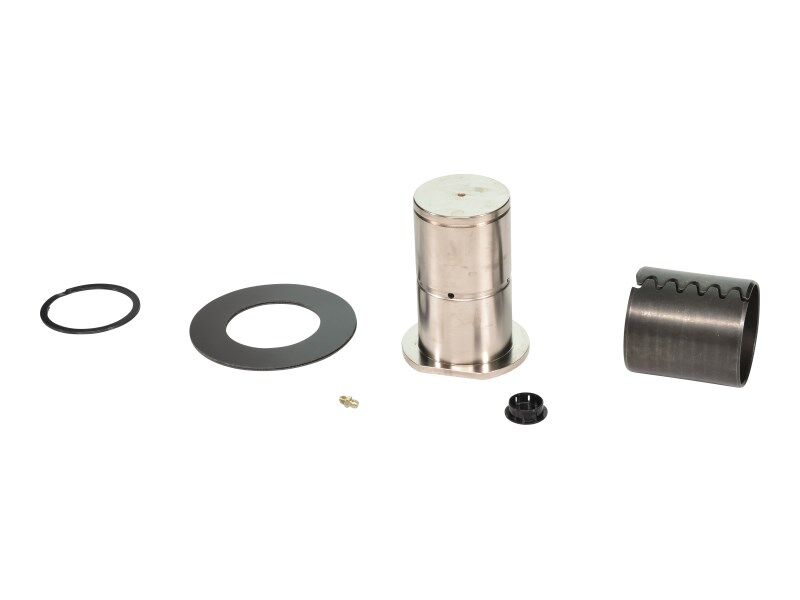

1001269378 XLP Wheel lift Pivot Pin Kit (greaseable)

This kit is for the low-profile carrier wheel lift assembly.

Kit contains the following items:

  • 4691000103 Pin (3.75 diam x 5.030/5.045)
  • 7209000028 Bushing (3.035 OD x 2.75 ID x 3.25 long, connex)
  • 7754000024 Ring (#Wsm-275)
  • 4949000047 Thrust Washer (x 2)
  • 7440030000 Grease fitting
  • 7701000007 Plastic plug (1″ pry-out hole)
SKU: 1001269378 Category: Tags: , , , ,

Description

1001269378 XLP Wheel lift Pivot Pin Kit (greaseable)

This kit is for the low-profile carrier wheel lift assembly.

Kit contains the following items:

  • 4691000103 Pin (3.75 diam x 5.030/5.045)
  • 7209000028 Bushing (3.035 OD x 2.75 ID x 3.25 long, connex)
  • 7754000024 Ring (#Wsm-275)
  • 4949000047 Thrust Washer (x 2)
  • 7440030000 Grease fitting
  • 7701000007 Plastic plug (1″ pry-out hole)

Additional information

Weight 9.15 lbs
Dimensions 9 × 7 × 5 in
