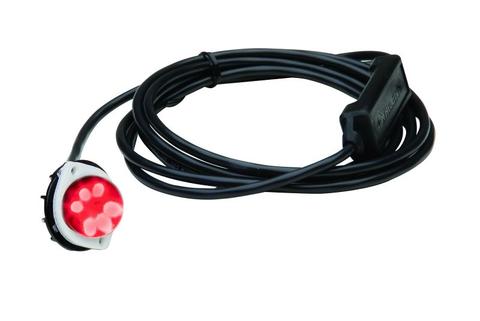

VTX609 – Recess or Surface Mount Omni Directional Super LED

$93.40

Whelen’s Vertex Series offers three different optical light output models to direct light anywhere it’s needed.

  • These small Super-LED® lightheads install easily with a 1″ hole and utilize an in-line lamp driver. Omni Directional Lighthead, Single Amber, Red, or White, Split color Amber/White, 9′ Cable
  • Available in single color or split color Amber, Blue, Red, and/or White • NEW Go undercover with all new Smoked lenses • 25 Scan-Lock™ flash patterns
  • Synchronizable to other Whelen sync products
  • Lamp and in-line lamp driver are fully encapsulated for moisture and vibration resistance
  • Mounts vertically or horizontally via two screws
  • Optional surface mount flanges available in Black or Chrome for models VTX609 and VTXD609 allow for mounting virtually anywhere
  • Simple installation with no separate lamp drivers, flashers, ballast, or power supplies
  • 1″ hole makes this LED module backwards compatible to HA238 and standard 1″ Hide-A-Way strobe style lamps
  • Virtually no RFI/EMI noise emitted, meets SAE J1113-41 Class 5
  • Includes a 9′ pre-wired and sealed 4-C/22 gauge cable with power, pattern, and synchronize wires
  • Five year warranty VTX609/XTX609
  • Omni-directional lighthead
  • Produces light in a hemispheric pattern
  • Mounts internally within composite headlight and taillight assemblies VTX3609
  • Side emitter lighthead
  • Produces light in a 360° side emitting pattern
  • Mounts internally within composite headlight and taillight assemblies VTXD609/XTXD609
  • Directional lighthead
  • Produces light in an upward pattern
  • Includes side emitting reflector for use internally within composite headlight and taillight assemblies
  • 10-16 VDC
SKU: VTX609 Category:

Description

Whelen’s Vertex Series offers three different optical light output models to direct light anywhere it’s needed.

  • These small Super-LED® lightheads install easily with a 1″ hole and utilize an in-line lamp driver. Omni Directional Lighthead, Single Amber, Red, or White, Split color Amber/White, 9′ Cable
  • Available in single color or split color Amber, Blue, Red, and/or White • NEW Go undercover with all new Smoked lenses • 25 Scan-Lock™ flash patterns
  • Synchronizable to other Whelen sync products
  • Lamp and in-line lamp driver are fully encapsulated for moisture and vibration resistance
  • Mounts vertically or horizontally via two screws
  • Optional surface mount flanges available in Black or Chrome for models VTX609 and VTXD609 allow for mounting virtually anywhere
  • Simple installation with no separate lamp drivers, flashers, ballast, or power supplies
  • 1″ hole makes this LED module backwards compatible to HA238 and standard 1″ Hide-A-Way strobe style lamps
  • Virtually no RFI/EMI noise emitted, meets SAE J1113-41 Class 5
  • Includes a 9′ pre-wired and sealed 4-C/22 gauge cable with power, pattern, and synchronize wires
  • Five year warranty VTX609/XTX609
  • Omni-directional lighthead
  • Produces light in a hemispheric pattern
  • Mounts internally within composite headlight and taillight assemblies VTX3609
  • Side emitter lighthead
  • Produces light in a 360° side emitting pattern
  • Mounts internally within composite headlight and taillight assemblies VTXD609/XTXD609
  • Directional lighthead
  • Produces light in an upward pattern
  • Includes side emitting reflector for use internally within composite headlight and taillight assemblies
  • 10-16 VDC
